Lamella separators with bypass

Usage and operation

NIXOR-NLB, NIXOR-NLOB bypass lamella separators are used to pre-treat rainwater from urban watersheds such as parking lots, roads, maneuvering areas, etc.
We are able to achieve high efficiency of sewage treatment from petroleum substances thanks to the use lamella clarifiers which support the gravitational separation of petroleum pollution. Sewage flowing into the devices enter through a vent found in the main pipe and are distributed throughout in the entire tank in where which the gravitational distribution of pollutants found in the sewage occurs. Next, they flow through the lamella clarifier, where highly-effective wastewater treatment from pollution takes place. The treated wastewater flows through the siphoned outlet into the main pipe. When the inflow of sewage exceeds the nominal size, excess wastewater flows directly to the outflow. In the case of separators without the NIXOR-NLB settling tank, incoming sewage must be pre-treated in a settling tank with adequate capacity.



Construction

Nixor-NLB and NIXOR-NLOB lamella separators with bypass are made as concrete, reinforced concrete or plastic tanks. Equipment made of PE and / or PP is assembled in the production plant. In case of the largest devices whose frames are delivered in elements (device marking B for this the type of device), equipment assembly takes place at the building site. Bypass lamella separators can be equipped with oil and sludge level sensors.

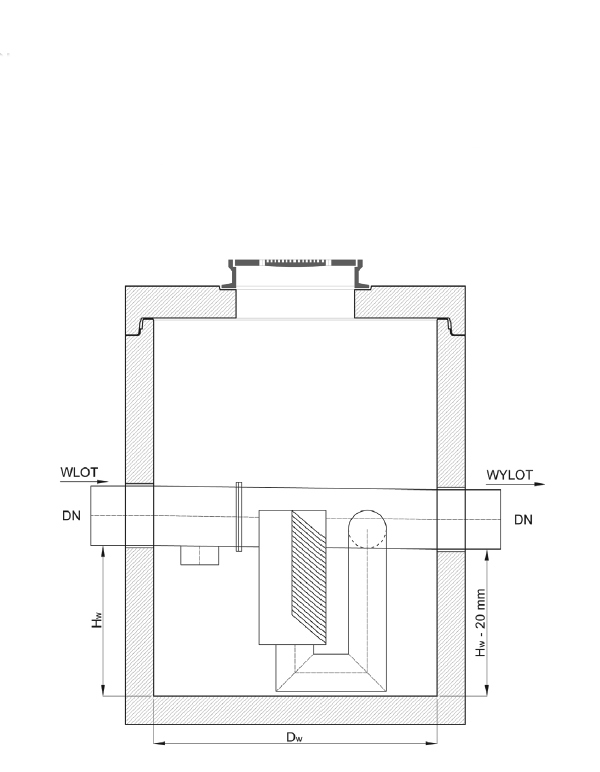

NIXOR-NLB lamella separator with bypass

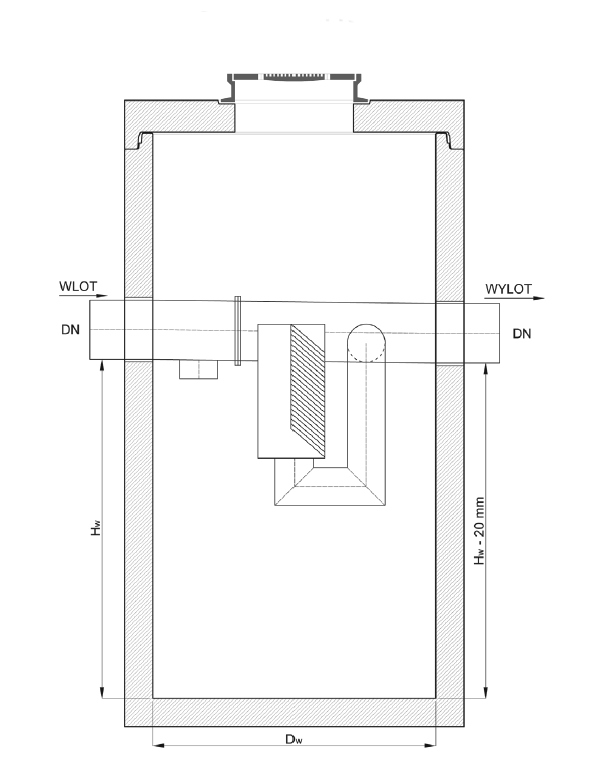

NIXOR-NLOB lamella separator with bypass and settling tank

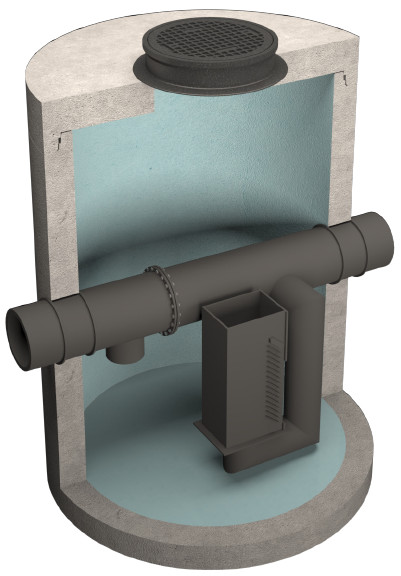

NIXOR-NLB bypass lamella separator

Typ urządzenia Wielkość nominalna Przepustowość Średnica wew. zbiornika Wysokość dopływu Zagłebienie minimalne* Średnica rur Pojemność gromadzenia oleju Karta katalogowa Deklaracja zgodności
NS Qmax DW HW Z DN Vol
dm3/s mm m m mm dm3
NLB 3/30 3 30 1200 0,58 0,77 ≤400 270
NLB 6/60 6 60 1200 0,58 0,77 ≤400 270
NLB 10/100 10 100 1200 0,58 0,77 ≤400 270
NLB 15/150 15 150 1500 0,80 0,85 ≤400 790
NLB 20/200 20 200 1500 0,80 0,85 ≤500 790
NLB 30/300 30 300 2000 1,00 0,85 ≤500 1830
NLB 40/400 40 400 2000 1,00 0,85 ≤500 1830
NLB 50/500 0 500 2000 1,55 0,80 ≤500 2030
NLB 60/600 60 600 2000 1,55 1,10 ≤630 2030
NLB 65/650 65 650 2000 1,55 1,10 ≤630 2030
NLB 70/700 70 700 2000 1,55 1,10 ≤630 2030
NLB 75/750 75 750 2000 1,55 1,10 ≤630 2030
NLB 80/800 80 800 2000 1,55 1,10 ≤630 2030
NLB 90/900 B 90 900 2000 1,55 1,30 ≤800 2030
NLB 100/1000 B 100 1000 2000 1,55 1,30 ≤800 2030
NLB 110/1100 B 110 1100 2500 1,80 1,55 ≤1000 4100
NLB 120/1200 B 120 1200 2500 1,80 1,55 ≤1000 4100
NLB 125/1250 B 125 1250 2500 1,80 1,55 ≤1000 4100
NLB 130/1300 B 130 1300 2500 1,80 1,55 ≤1000 4100
NLB 140/1400 B 140 1400 2500 1,80 1,55 ≤1000 4100
NLB 150/1500 B 150 1500 2500 1,80 1,55 ≤1000 4100
NLB 160/1600 B 160 1600 2500 1,80 1,55 ≤1000 4100
NLB 170/1700 B 170 1700 2500 1,80 1,55 ≤1000 4100
NLB 180/1800 B 180 1800 2500 1,80 1,55 ≤1000 4100
NLB 190/1900 B 190 1900 2500 1,80 1,55 ≤1000 4100
NLB 200/2000 B 200 2000 2500 1,80 1,55 ≤1000 4100

Z – designated for the maximum pipe diameter for a given device; individual solutions will be used in the case of depth less than the minimum

B - devices delivered in elements for assembly on the construction site by the ordering party.

NIXOR reserves the right to make design changes without prior notification.

It is possible to increase the capacity of the sludge and oil storage for individual situations.

NIXOR-NLOB lamella separator with bypass and settling tank

Typ urządzenia Wielkość nominalna Przepustowość Średnica wew. zbiornika Wysokość dopływu Zagłębienie minimalne* Średnica rur Pojemność gromadzenia oleju Pojemność części osadowej Karta katalogowa Deklaracja zgodności
NS Qmax DW HW Z DN Vol Vos
  dm3/s mm m m mm dm3 dm3
NLOB 3/30/300 3 30  1200  0,69 0,66  ≤315  270  300
NLOB 3/30/600 3  30  1500  0,76 0,89  ≤315  430  600
NLOB 6/60/600 6  60  1500  0,76 0,89  ≤315  430  600
NLOB 6/60/1200 6  60  1500  1,10  0,80  ≤315  430  1200
NLOB 10/100/1000 10  100  1500  0,99  0,91  ≤400  430  1000
NLOB 10/100/2000 10  100  1500  1,56  0,84  ≤400  430  2000
NLOB 10/100/3000 10  100  2000  1,38  0,67  ≤400  770  3000
NLOB 15/150/1500 15  150  1500  1,45  0,95  ≤400  790  1500
NLOB 15/150/3000 15  150  2000  1,56  0,69  ≤400  1420  3000
NLOB 20/200/2000 20  200  1500  1,74  0,91  ≤500  790  2000
NLOB 20/200/4000 20  200  2000  1,88  0,77  ≤500  1420  4000
NLOB 30/300/3000 30  300  2000  1,64  0,81  ≤500  1710  3000
NLOB 30/300/6000 B 30  300  2500  1,91  0,84  ≤500  2690  6000
NLOB 40/400/4000 B 40  400  200  1,96  0,79  ≤500  1710  4000
NLOB 40/400/8000 B 40  400  2500  2,32  0,83  ≤500  2690  8000
NLOB 50/500/5000 (2000) B 50  500  2000  2,83  0,82  ≤500  2030  5000
NLOB 50/500/5000 (2500) B 50  500  2500  2,26  0,79  ≤500  3210  5000
NLOB 50/500/10000 B 50  500  3000  2,65  0,80  ≤500  4640  10000
NLOB 60/600/6000 (2000) B 60  600  2000  3,15  1,00  ≤630  2030  6000
NLOB 60/600/6000 (2500) B 60  600  2500  2,46  0,99  ≤630  3210  6000
NLOB 60/600/12000 B 60  600  3000  2,09  0,96  ≤630  4640  12000
NLOB 65/650/6500 (2000) B 65  650  20000  3,31  0,94  ≤630  2030  6500
NLOB 65/650/6500 (2500) B 65  650  2500  2,56  0,99  ≤630  3210  6500
NLOB 70/700/7000 (2000) B 70  700  2000  3,47  0,98  ≤630  2030  7000
NLOB 70/700/7000 (2500) B 70  700  2500  2,67  0,98  ≤630  3210  7000
NLOB 75/750/7500 (2000) B 75  750  2000  3,63  1,02  ≤630  2030  7500
NLOB 75/750/7500 (2500) B 75  750  2500  2,77  0,98  ≤630  3210  7500
NLOB 80/800/8000 (2000) B 80  800  2000  3,79  0,96  ≤630  2030  8000
NLOB 80/800/8000 (2500) B 80  800  2500  2,87  0,98  ≤630  3210  8000
NLOB 90/900/9000 (2500) B 90  900  2500  3,07  1,18  ≤800  3210  9000
NLOB 90/900/9000 (3000) B 90  900  3000  2,51  1,14  ≤800  4640  9000
NLOB 100/1000/10000 (2500) B 100  1000  2500  3,28  1,17  ≤800  3210  10000
NLOB 100/1000/10000 (3000) B 100  1000  3000  2,65  1,20  ≤800  4640  10000
NLOB 110/1100/11000 B 110  1100  3000 2,96  1,39  ≤1000  5960  11000
NLOB 120/1200/12000 B 120  1200  3000  3,10  1,35  ≤1000  5960  12000
NLOB 125/1250/12500 B 125  1250  3000 3,17  1,38  ≤1000  5960  12500
NLOB 130/1300/13000 B 130  1300  3000  3,24  1,41  ≤1000  5960  13000
NLOB 140/1400/14000 B 140  1400  3000  3,39  1,36  ≤1000  5960  14000
NLOB 150/1500/15000 B 150  1500  3000  3,53  1,42  ≤1000  5960  15000
NLOB 160/1600/16000 B 160  1600  3000  3,67  1,38  ≤1000  5960  16000
NLOB 170/1700/17000 B 170  1700  3000  3,81  1,34  ≤1000  5960  17000
NLOB 180/1800/18000 B 180  1800  3000  3,95  1,40  ≤1000  5960  18000
NLOB 190/1900/19000 B 190  1900  3000  4,09  1,36  ≤1000  5960  19000
NLOB 200/2000/20000 B 200  2000  3000  4,23  1,42  ≤1000  5960  20000

* Z - designated for the maximum pipe diameter for a given device; individual solutions will be used in the case of depth less than the minimum

B - devices delivered in elements for assembly on the construction site by the ordering party.

NIXOR reserves the right to make design changes without prior notification.

It is possible to increase the capacity of the sludge and oil storage for individual situations.
