Grease separators

Usage and Operation

Grease separators are devices which separate and keep organic grease from sewage. The separation of pollutants is achieved by decreasing wastewater flow rates and gravitational flotation. The NIXOR-NT and NIXOR-NTO grease separators should be used in all places where it is necessary to separate grease from vegetable and animal oils from wastewater, both in commercial and production facilities (e.g. restaurants, hotels, factories).

In the case of separators without the NIXOR-NT settling tank, incoming sewage must be pre-treated in a settling tank with adequate capacity.

Construction

NIXOR-NT and NIXOR-NTO grease separators are made from concrete, reinforced concrete or plastic tanks, equipped with deflectors at the inlet and outlet. This solution makes it possible to stop separated grease and prevent it from getting through points of outflow and inflow. Tight connection of pipelines is achieved by using elastomer seals or airtight passageways. For the largest devices where the frames are delivered in elements (B in the type of device), the equipment is assembled on construction site. Optionally, they can be equipped with a grease or residue level sensor.

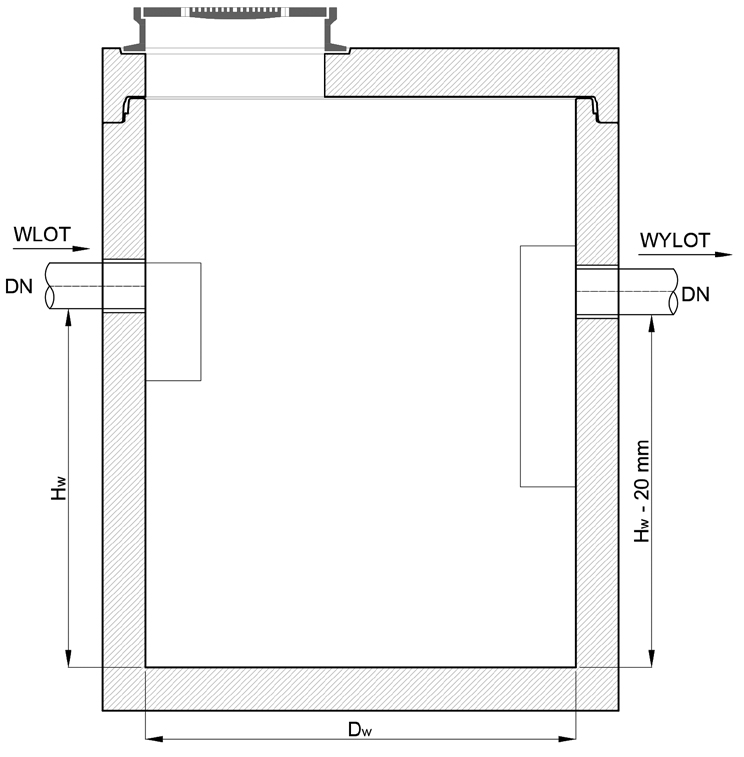

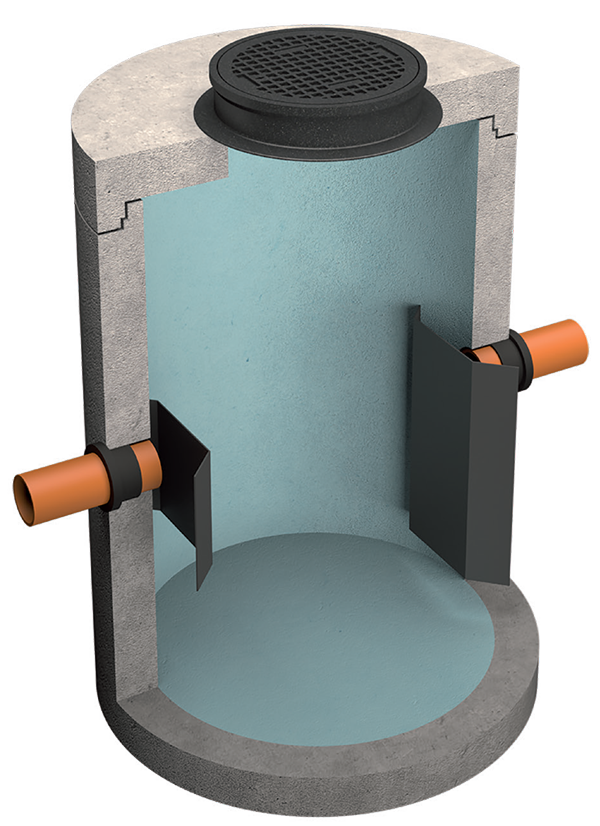

NIXOR-NT grease separator

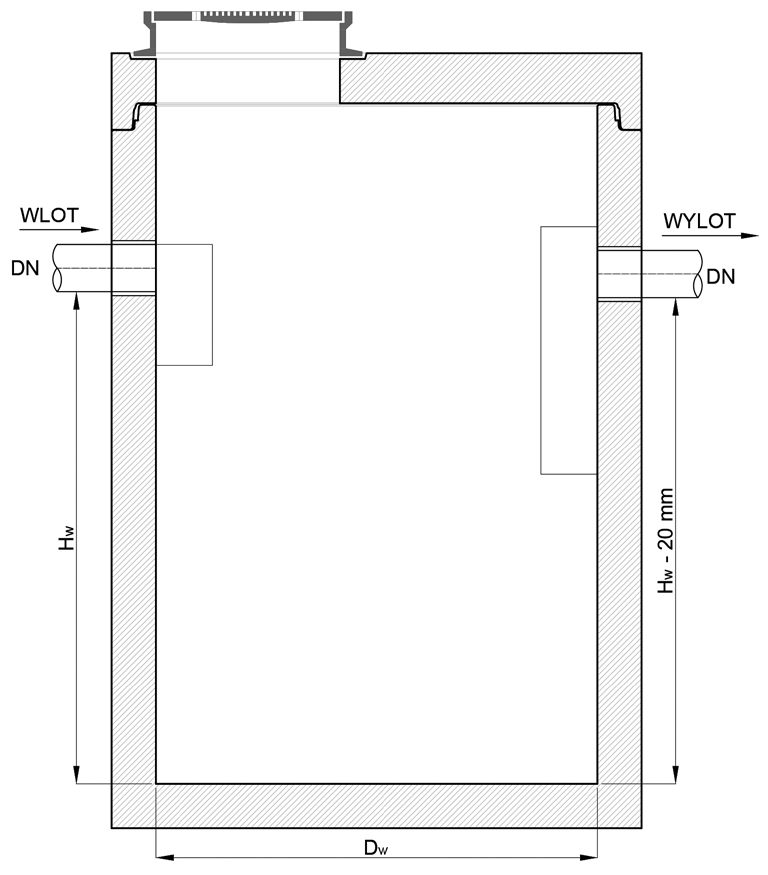

NIXOR-NTO grease separator with settling tank

NIXOR-NT grease separators

Device type	Nominal size	Interior tank diameter	Height of inflow	Minimum depth*	Pipeline diameter	Fat collection capacity	Data sheet	Declaration of Conformity
	NS	D_w	H_w	Z	DN	Vol
	NS	mm	m	m	mm	dm3
NT 1	1	1000	0,72	0,43	160	80
NT 2	2	1000	0,87	0,53	160	80
NT 4	4	1200	1,13	0,47	160	160
NT 7	7	1500	1,25	0,65	160	280
NT 10	10	2000	0,97	0,48	160	400
NT 15	15	2500	0,93	0,52	200	600
NT 20	20	2500	1,24	0,51	200	830
NT 25	25	3000	1,06	0,49	200	1020

* Z - designated for the maximum pipe diameter for a given device; individual solutions will be used in the case of depth less than the minimum

NIXOR reserves the right to make design changes without prior notification.

In individual solutions there is the possibility of increasing the grease storage capacity.

Grease separators with NIXOR-NTO settling tank

Device type	Nominal size	Interior tank diameter	Height of inflow	Minimum depth*	Pipeline diameter	The capacity of the sediment part	Fat collection capacity	Data sheet	Declaration of Conformity
	NS	D_w	H_w	Z	DN	Vol	m
	NS	mm	m	m	mm	dm3	dm3
NTO 1/100	1	1000	0,87	0,53	160	100	80
NTO 1/200	1	1000	1,00	0,65	160	200	80
NTO 2/200	2	1000	1,14	0,51	160	200	80
NTO 2/400	2	1000	1,39	0,51	160	400	80
NTO 4/400	4	1200	1,50	0,60	160	400	160
NTO 4/800	4	1200	1,85	0,50	160	800	160
NTO 7/700	7	1500	1,67	0,48	160	700	280
NTO 7/1400	7	1500	2,07	0,58	160	1400	280
NTO 10/1000	10	2000	1,30	0,45	160	1000	400
NTO 10/2000	10	2000	1,62	0,43	160	2000	400
NTO 15/1500	15	2500	1,26	0,49	200	1500	600
NTO 15/3000	15	2500	1,57	0,48	200	3000	600
NTO 20/2000	20	2500	1,66	0,48	200	2000	830
NTO 20/4000	20	2500	2,07	0,48	200	4000	830
NTO 20/4000 B	20	2500	2,07	0,48	200	4000	830
NTO 25/2500	25	3000	1,42	0,53	200	2500	1020
NTO 25/2500 B	25	3000	1,42	0,53	200	2500	1020
NTO 25/5000	25	3000	1,77	0,48	200	5000	1020
NTO 25/5000 B	25	3000	1,77	0,48	200	5000	1020

* Z - designated for the maximum pipe diameter for a given device; for devices with a smaller than minimal depression, individual solutions will be used.

B - devices delivered in elements for assembly on the construction site by the ordering party.
